WT-11

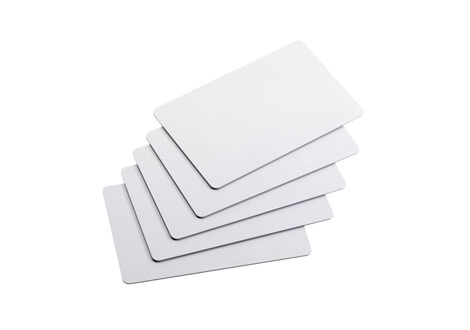

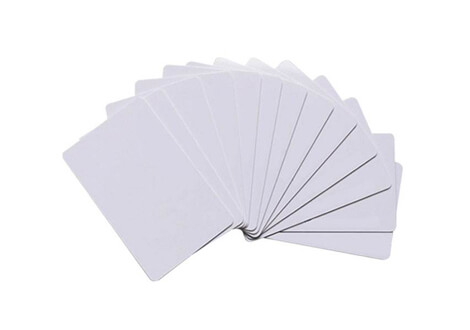

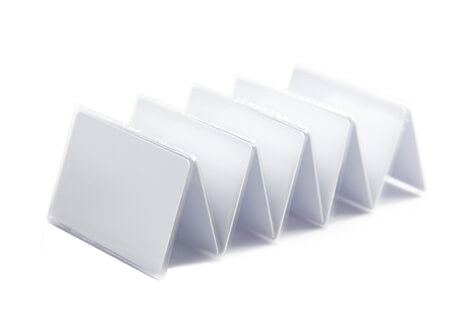

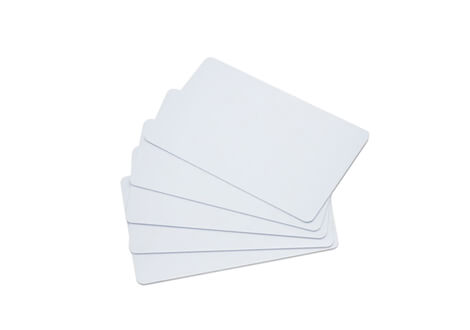

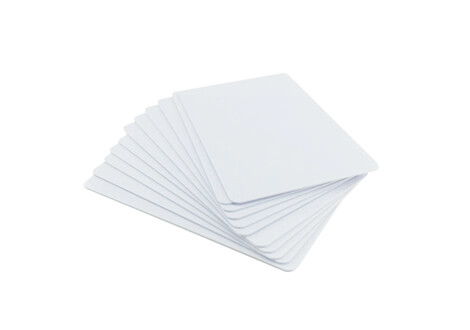

UHF Standard Card

• Provide global operation in UHF 860MHz - 960MHz frequency band

• It provides complete read/write functions

• Made of PVC material the size of a credit card, a combination of slim design and flexible durability.

• Blank or custom-printed RFID cards of optional size, or provide RFID tags on request.

Product features

Specification

Application

◆ Dimensions: 85.5 × 54 × 0.8mm (Available in a variety of sizes)

◆ Operating Frequency: 860MHz - 960MHz (Customizable)

◆ Air Interface Protocol: EPCglobal Class 1 Gen 2（ISO 18000-6C）

◆ Can be personalized design printing patterns

◆ Can screen printing of various ICONS, digital jet code, laser coding, etc

Product Model		WT-11
Operating Frequency		860MHz - 868MHz / 902MHz - 928MHz
Air Interface Protocol		EPCglobal Class 1 Gen 2（ISO 18000-6C）
Dimensions		85.5 × 54 × 0.8mm
Memory		H3，96bit EPC + 512bit
Tag Materials		PVC
Read Distance		>3 - 15m （Depends on the reader and antenna）
		Laser engraving
Personalization Options		Customer specific printing
		Printing with variable data
Data Preservation		＞10 years
Work Mode		Read / Write
Operating Temperature		-20℃ to +50℃
Ambient Temperature		-40℃ to +70℃
Weight		2g
