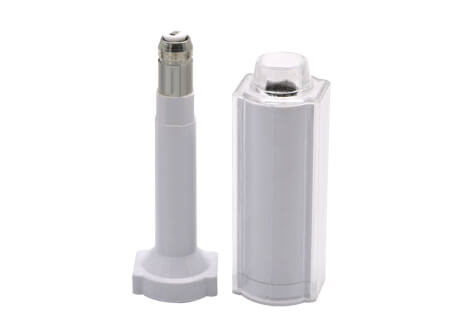

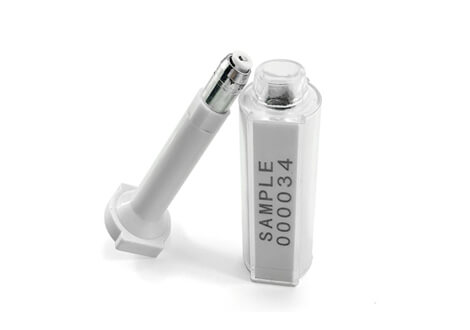

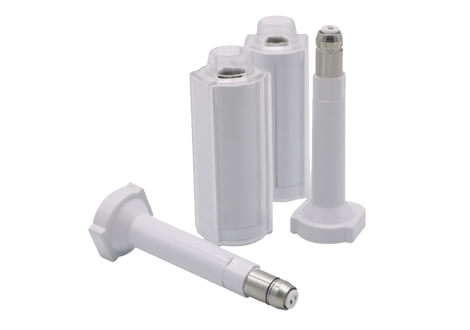

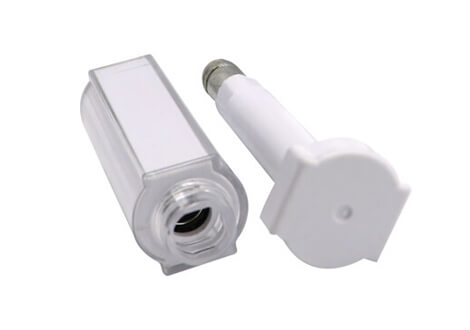

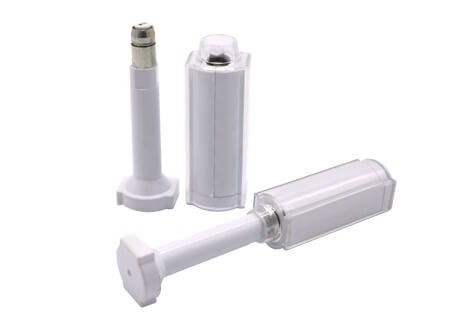

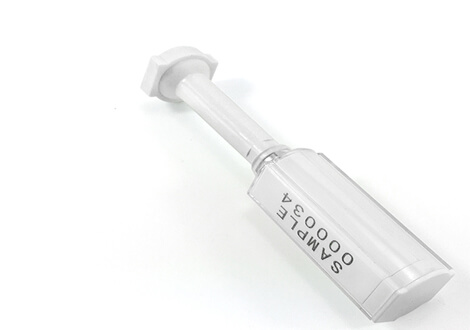

WT-35

UHF Electronic lock label

• Based on the independent intellectual property development, the label ADAPTS to the global frequency band working Settings.

• The linear polarization design has high reading rate and label recognition sensitivity in specific directions.

• High anti-counterfeiting performance, unique identification code (TID code).

• Suitable for customs logistics container, etc.

Product features

Specification

Application

◆ Dimensions: 119.5 × 24 × 24mm （When Locked）

Male 75.4 × 24 × 24mm，Female 67 × 24 × 24mm

◆ Operating Frequency: 860MHz - 960MHz (Customizable)

◆ Air Interface Protocol: EPCglobal Class 1 Gen 2（ISO 18000-6C）

◆ With ultra-high mechanical strength (using international box seal standards)

◆ Unable to read before use and after destruction

◆ Tensile strength up to 300Kg

◆ To meet the different needs of customers, we can provide personalized choices, including surface printing electronic codes, patterns and text.

Product Model		WT-35
Operating Frequency		902MHz - 928MHz （Customizable）
Air Interface Protocol		EPCglobal Class 1 Gen 2（ISO 18000-6C）
Dimensions		119.5 × 24 × 24mm （When Locked）
		Male 75.4 × 24 × 24mm，Female 67 × 24 × 24mm
Memory		H3，96bit EPC + 512bit
Tag Materials		ABS + Metal
Applicable Surface Materials		all kinds of standard containers, vans, doors,
		postal vehicles and so on.
Read Distance		>5m （Depends on the reader and antenna）
		Laser engraving
Personalization Options		Customer specific printing
		Printing with variable data
Pulling Force		F≥300KG
Operating Temperature		-40℃ to +85℃
Installation Method		Insert
Weight		60g
